product accessories

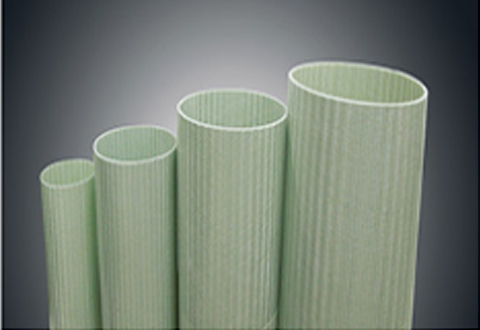

BWFRP power and communication pipelines are made of high-performance fiber composite materials and epoxy resin as raw materials, consisting of a woven layer, an intermediate layer, and an outer layer. They are formed by interweaving and extruding high-performance fibers longitudinally and transversely. It has ten characteristics, including high ring stiffness, strong stretchability, smooth inner wall, excellent thermal conductivity, high and low temperature resistance, high electrical insulation, strong flame retardancy, corrosion resistance and waterproofing, easy transportation and installation, and safety and environmental protection.

Industry execution standards Specifications, models, and parameters

A - Pillow Pin（HDPE）

Specification （mm）

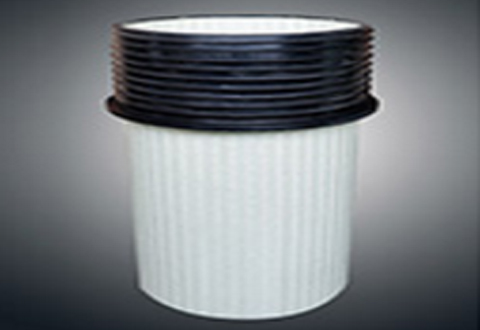

B - Pipe Plug

Specification （mm）

100/150/175/200/

C - O-Ring

Specification （mm）

100/150/175/200/250

D – Part Number

100x(155x155x45)

150x(205x205x45)

170x(235x235x45)

200x(260x260x45)

Pipe pillow: According to the relevant pipeline specifications, each pipeline is 6 meters long, and one pipe pillow must be installed every 2 meters. A total of three pipe pillows are required

Pipe plug: configured according to relevant pipeline specifications and requirements

Specification and model of pipeline fittings

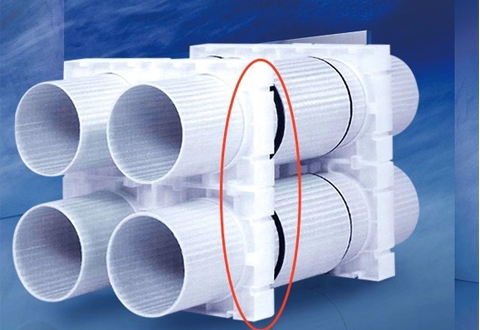

Pipe pillow configuration: The distance between pipe pillows is 2 meters, and the distance between the pipe pillows and the joint is 0.5 meters. The pipe pillows are connected using pillow pins

Specification of Pipe Pillow (HDPE) (mm): Mainly used for fixing the installation of power cable protection sleeves, it has the advantages of excellent electrical insulation, high strength, corrosion resistance, and easy installation
